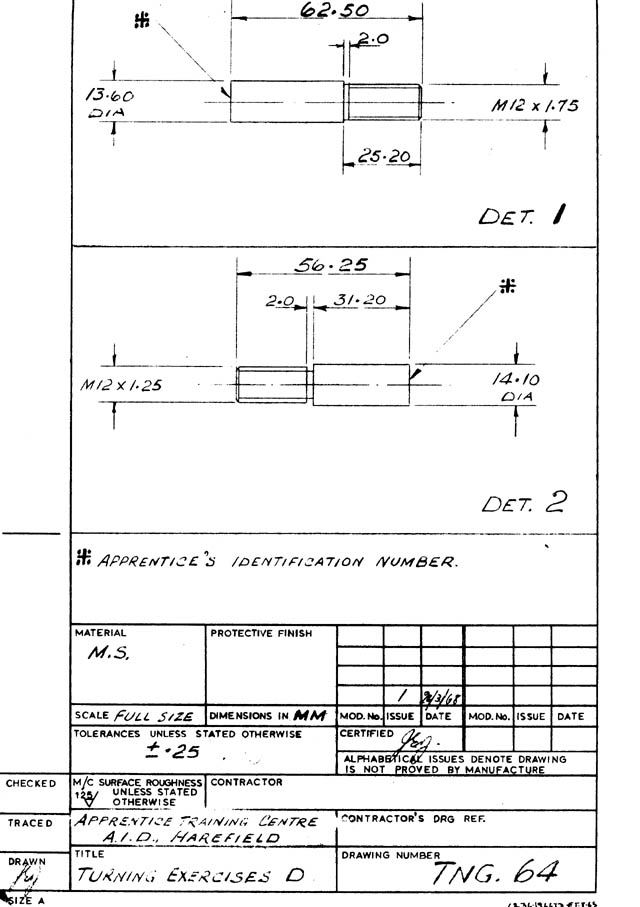

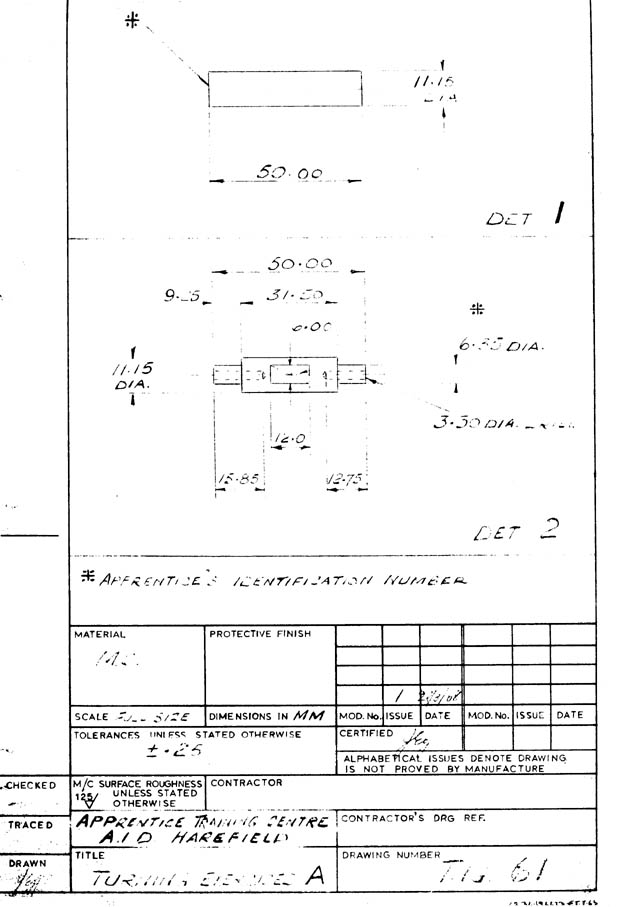

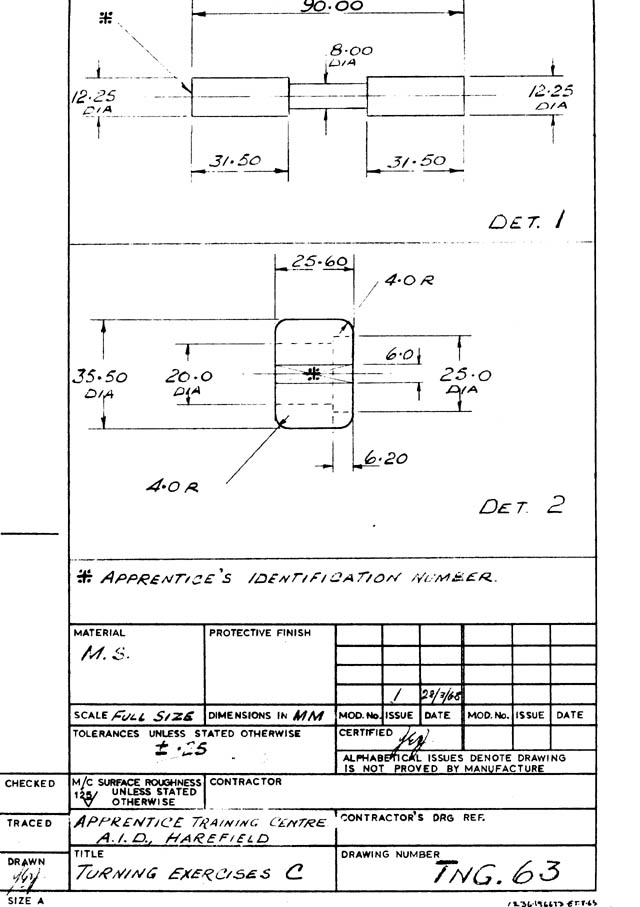

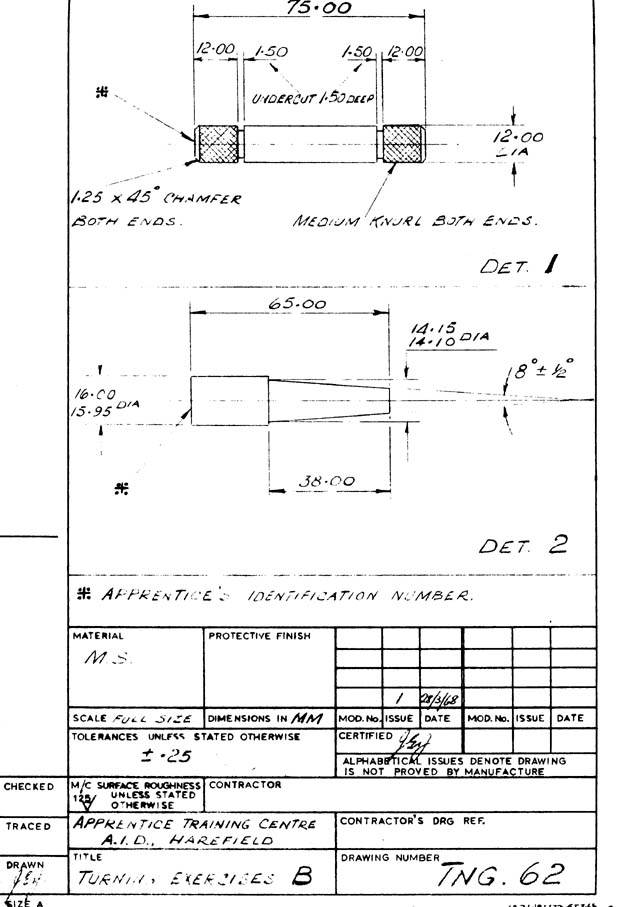

1st year Turning Exercises
NOTE: These drawings were slightly over A4 so what you
see is what fitted on the scanner. (UK A4 size).
The missing top sections were in poor condition on a couple of the drawings so
I have recreated them using
the figures from the bottom of the drawings which were in good condition, and a
single good top section.
Should you be so inclined, you can weld the two bits together to create a
single, complete, drawing.
When you print, you should get a single page with this writing and all the tops
followed by each bottom on
a single page. You could, as an alternative, save each of the images and stitch
them together in a graphics
program and then shrink them to fit whatever size you print.
